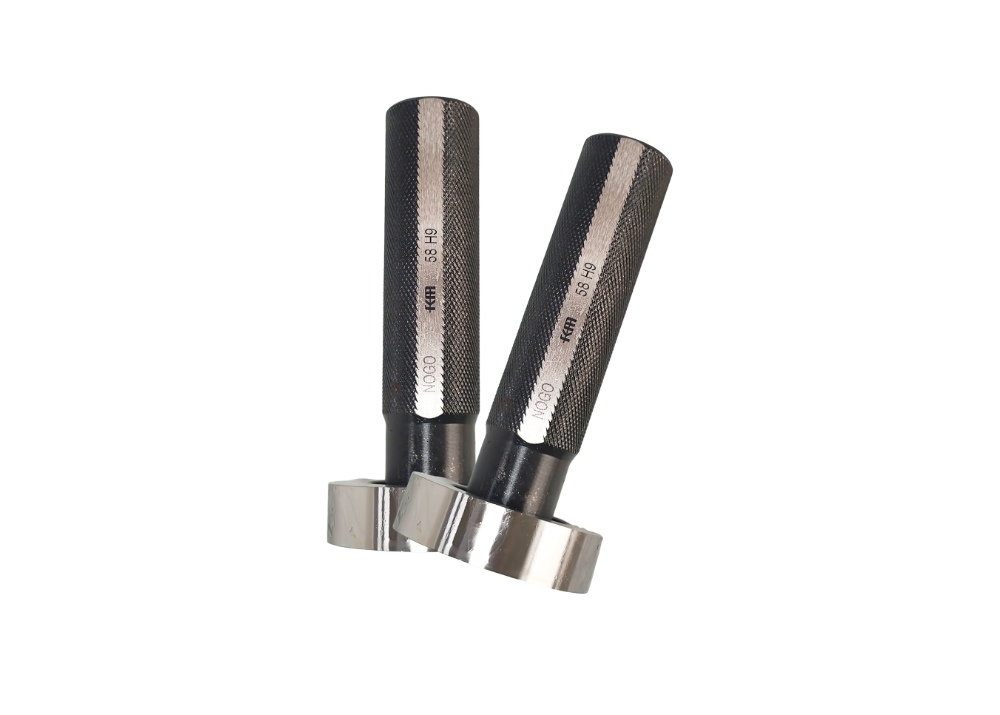

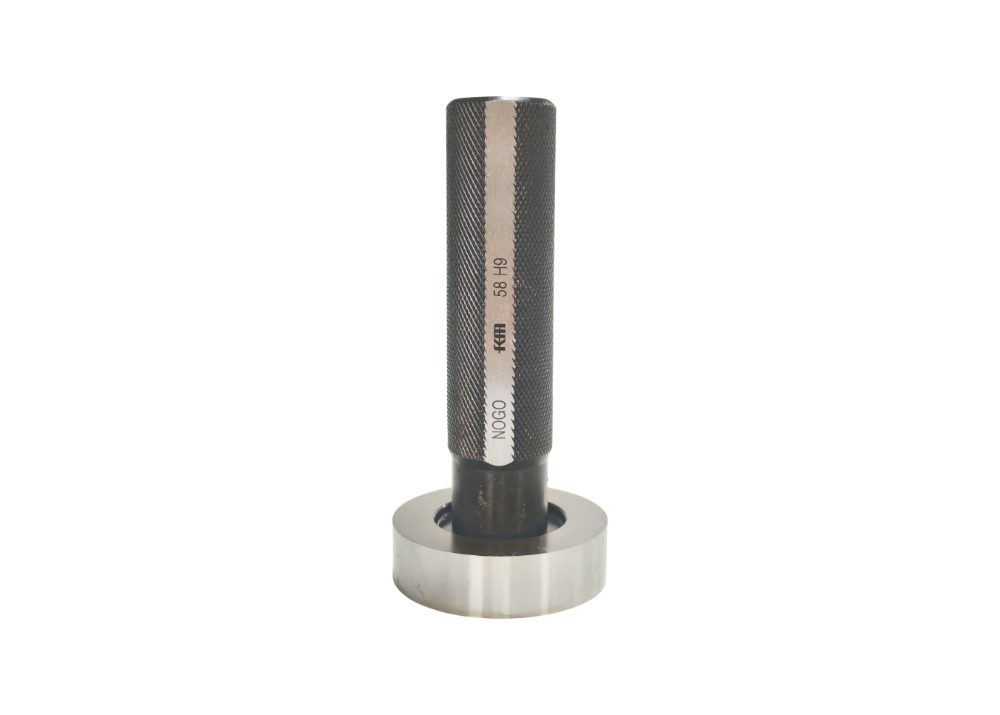

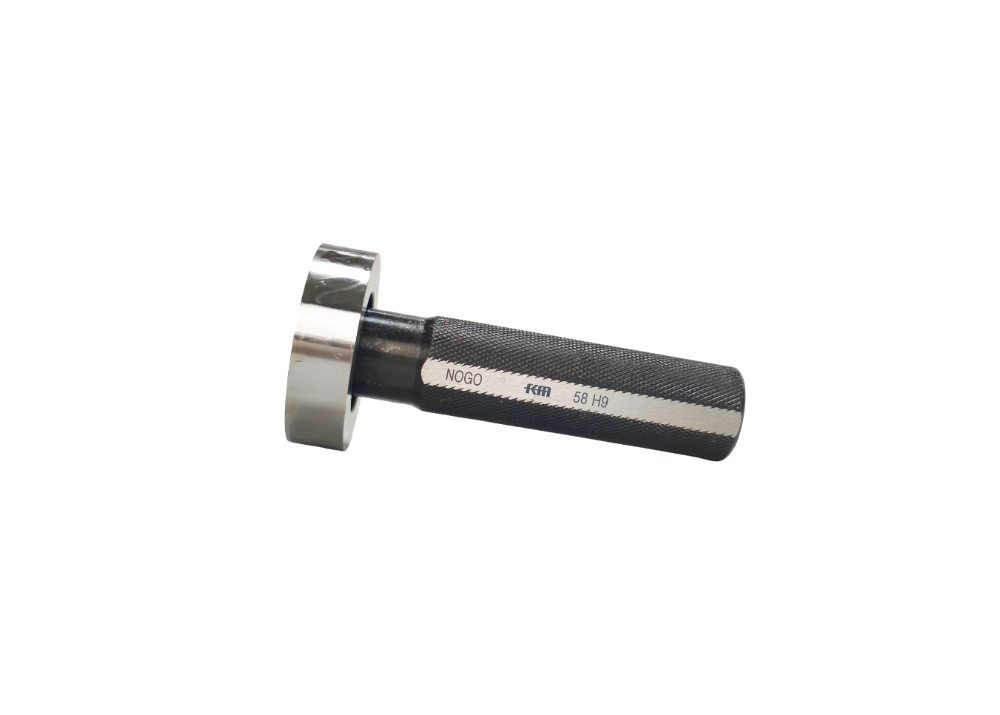

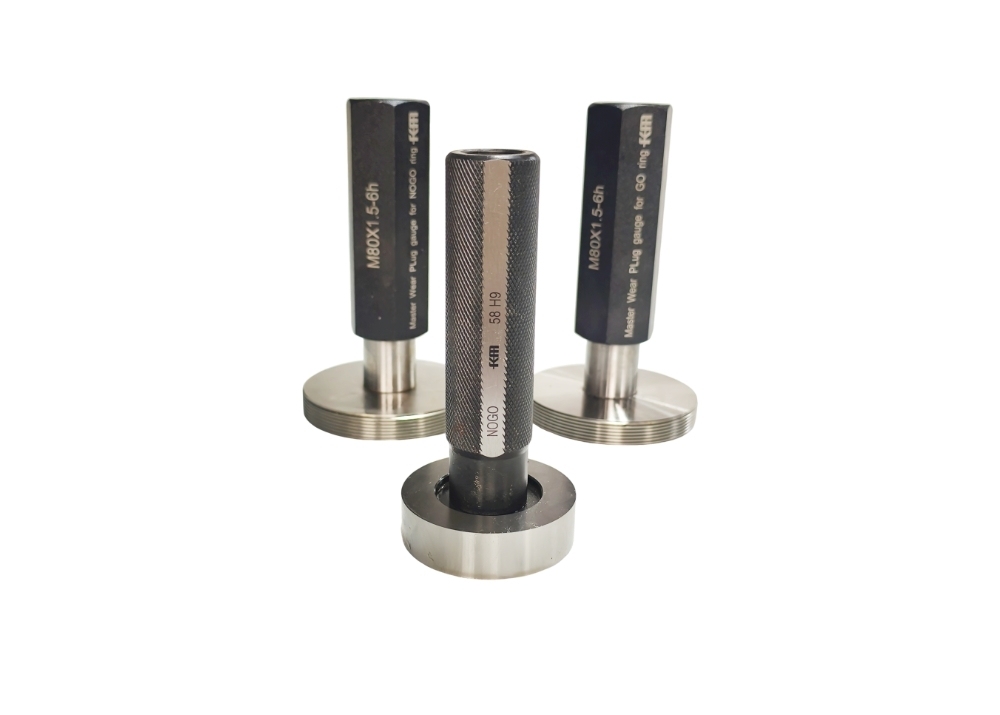

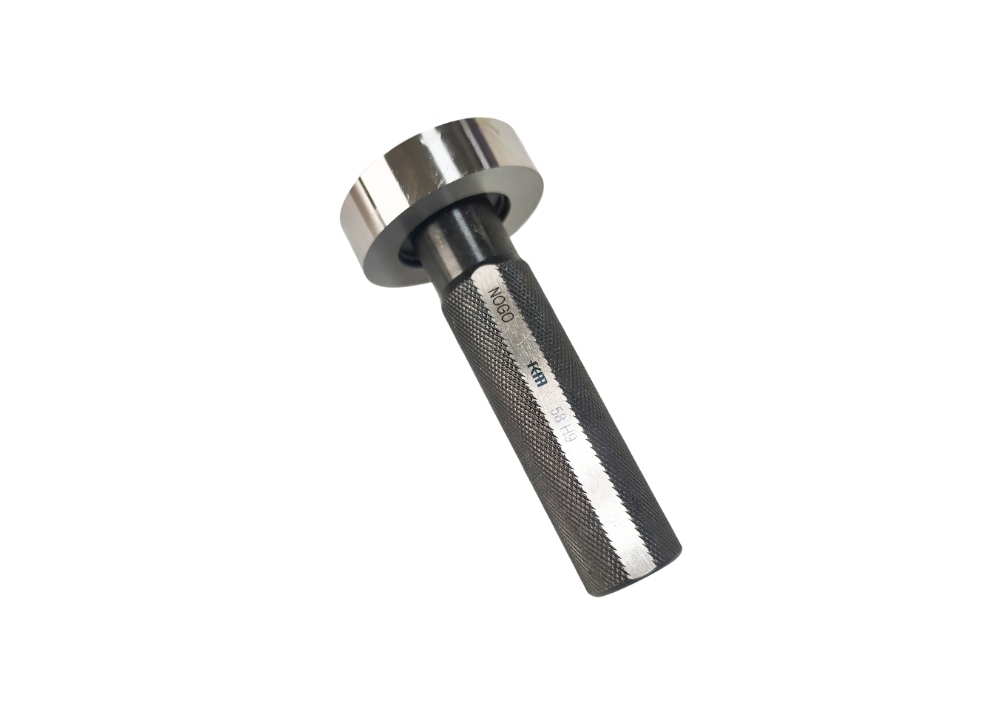

Smooth 58H9 Nogo Plug Gauge with Gcr15 Steel for Dimensional Benchmarks
-
Vurgulamak
Smooth 58H9 Nogo Plug Gauge
,Dimensional Benchmarks Plug Gauge
-
GarantiBir yıl
-
TipPürüzsüz fiş göstergesi
-
Ölçüm Nesnesiİç delik boyutu
-
Standarda UygunDin7162
-
Boyut58H9
-
MalzemeGcr15 Çelik
-
KullanımÇalışma ve Denetim için
-
KesinlikH6 H7 H8
-
Ölçüm yöntemiManuel
-
PaketABS Kutusu
-
Menşe yeriShaanxi, Çin
-
Marka adıKM
-
SertifikaISO DIN GB RoHS
-
Model numarasıKM-PP58-H9
-
Ambalaj bilgileriAbs kutusu 10*2*1.5cm/parça 0.20kg/parça
-
Teslim süresi15 gün içinde
-
Ödeme koşullarıT/T, L/C, D/P, D/A, Western Union, PayPal, MoneyGram
-
Yetenek temini50000Pieces/ay
Smooth 58H9 Nogo Plug Gauge with Gcr15 Steel for Dimensional Benchmarks
Smooth 58H9 Nogo Plug Gauge with Gcr15 Steel for Dimensional Benchmarks
Product Description
Deko Corp provides a complete line of smooth plug gauges available in sizes from 1.8 to 300mm. These precision measuring tools are used to measure the inner hole size of workpieces. Smooth plug gauges come in two types: maximum limit size and minimum limit size. The minimum limit size end is called the GO end, while the maximum limit size end is called the NOGO end.
Our smooth plug gauges can be customized to various specifications according to user requirements. They serve as dimensional benchmarks and comparative measurement tools. The structure is simple, typically consisting of a solid cylinder or cone with precise dimensions.
Note: When ordering, please specify requirements (example: 8 plug gauge 6H GO and NOGO).
Key Features
- Smooth plug gauge design
- Available accuracies: H6, H7, H8, etc.
- GO, NOGO, and combination GO/NOGO types available
- Conforms to DIN7162 standard
- Excellent wear and corrosion resistance
- Stable structure for easy operation
- Supplied in protective fitted case
Specifications
| Size | Accuracy |
|---|---|
| 58 | H6 H7 H8 |
| ... | |
| 300 |
Applications
- Hole inspection: Verifies workpiece hole dimensions meet design specifications
- Quality control: Ensures production parts maintain dimensional standards
- Standardized production: Maintains consistency across production batches, improving efficiency and quality
Usage Precautions
- Inspect gauge measuring surfaces for cleanliness and defects before use
- Use only during valid calibration period with proper documentation
- Maintain measurement temperature near 20°C with minimal insertion force
- Insert/remove gauge along hole axis without tilting or rotation
- Avoid turning or shaking gauge during measurement
- Clean thoroughly after each use to maintain accuracy
Packing & Shipping
Company Profile
Frequently Asked Questions
1) Who are we?
Deko Corporation specializes in the development, manufacture, and marketing of KM brand precision measuring tools in China mainland.
2) What products do we carry?
Our product line includes dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, and more.
3) How about after-sales service?
All products come with a one-year warranty. Defective items will be replaced promptly. Our strict calibration and inspection processes ensure reliable product quality.
