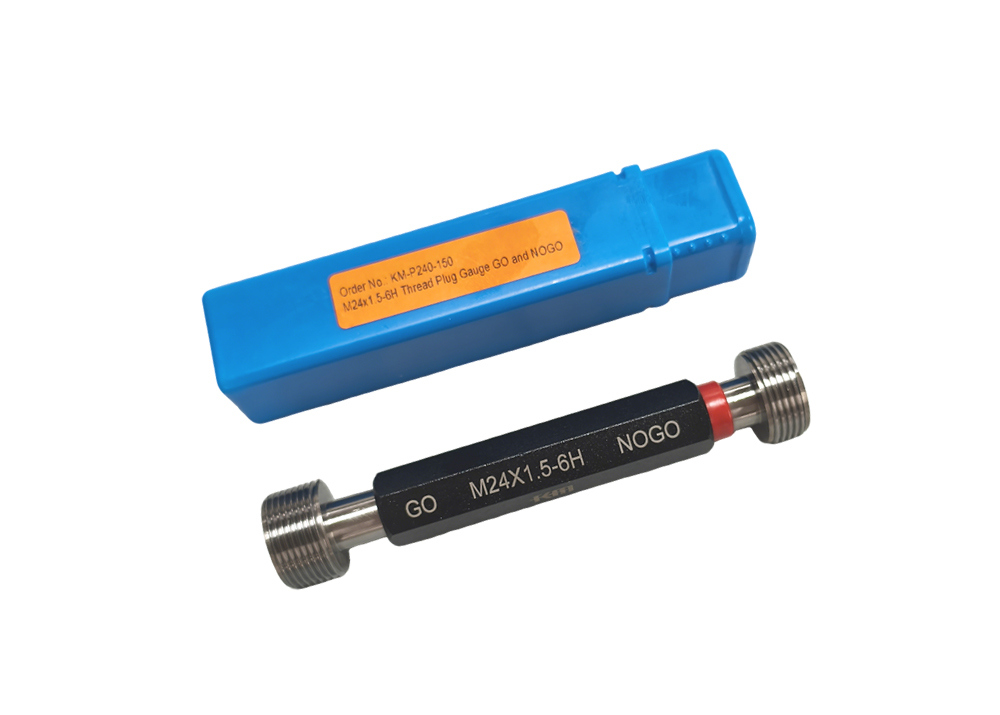

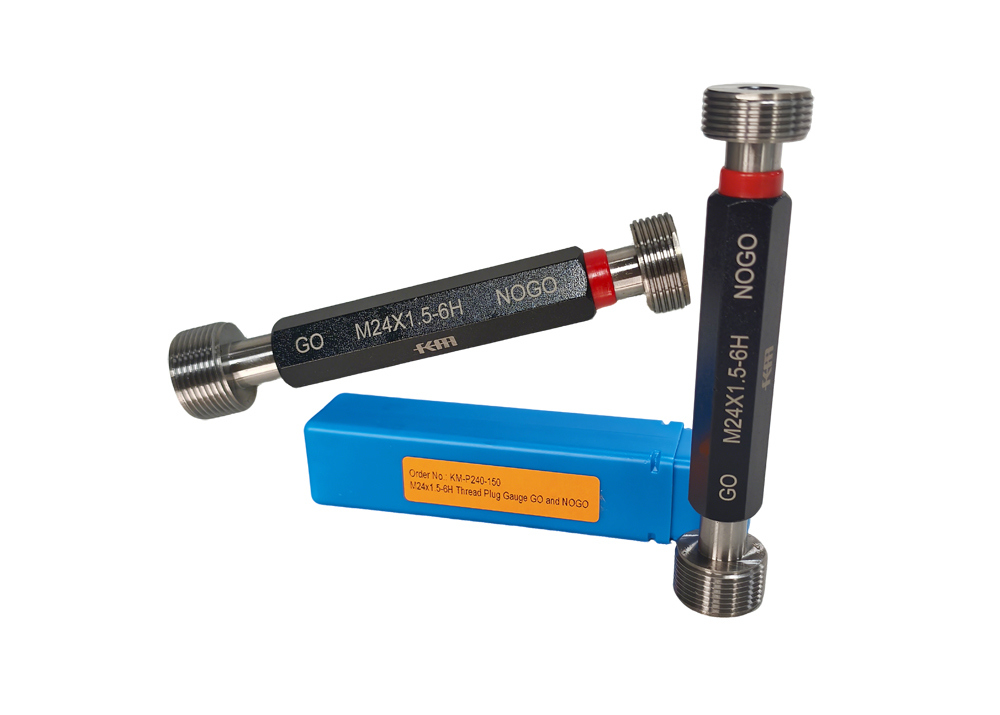

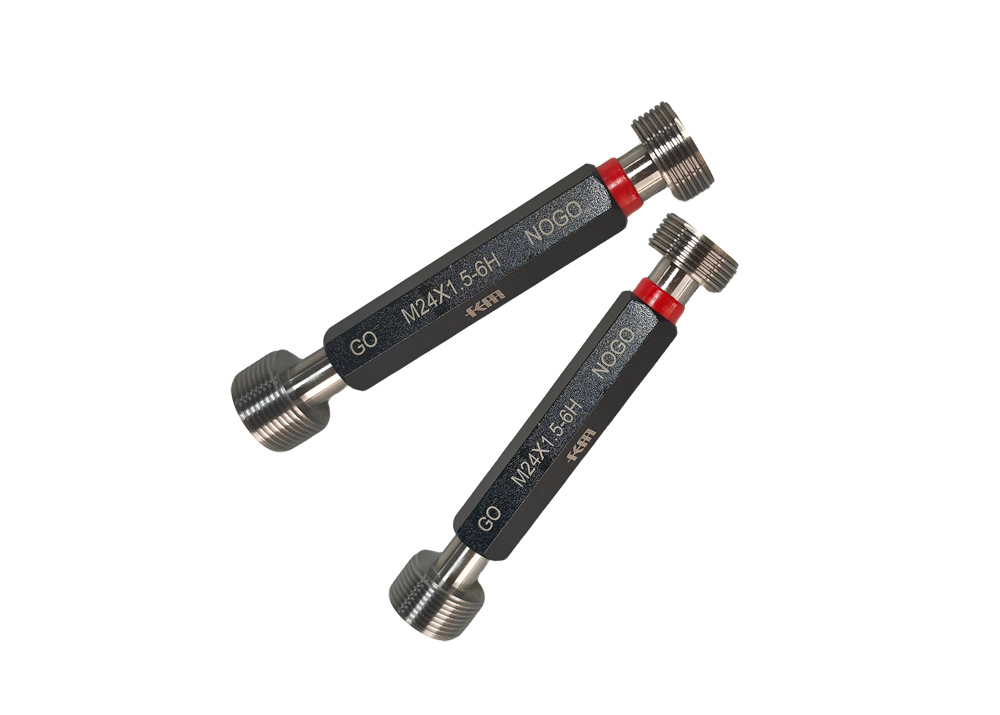

Highly Precise M24X1.5-6H Metric Thread Plug Gauge for Accurate Thread Checking
-
Vurgulamak
6H Metric Thread Plug Gauge
,Accurate Thread Checking Plug Gauge
,Highly Precise Thread Plug Gauge
-
GarantiBir Yıl
-
TipMetrik Konu Fiş Ölçer
-
MalzemeTakım Çeliği
-
Standarda UygunDIN13
-
Konu spesifikasyonuM24x1.5-6H GO NOGO
-
Kesinlik5g,5h, 6g,6h,7g,7h, vb
-
KullanımÇalışma ve Denetim için
-
Ölçüm NesnesiDişli veya Dişli Delikleri vb. Kontrol Edin
-
PaketABS Kutusu
-
Menşe yeriShaanxi, Çin
-
Marka adıKM
-
SertifikaISO DIN GB RoHS
-
Model numarasıKM-P240-150
-
Ambalaj bilgileriABS Kutusu 15*4.5*4.5cm/Adet 0.36kg/Adet
-
Teslim süresi15 gün içinde
-
Ödeme koşullarıT/T, L/C, D/P, D/A, Western Union, PayPal, MoneyGram
-
Yetenek temini50000Pieces/ay
Highly Precise M24X1.5-6H Metric Thread Plug Gauge for Accurate Thread Checking
Highly Precise M24X1.5-6H Metric Thread Plug Gauge for Accurate Thread Checking
These metric plug ring gauges are metrology tools used for checking threaded or tapped holes, verifying the proper thread type, major diameter, minor diameter, pitch diameter, and pitch of the thread against a mating thread gauge.
We utilize first-grade thread machining centers and measuring equipment to provide high precision thread ring gauges worldwide. Plug gauges offer fast results and simple operation, requiring minimal training for effective use.
Key Features
- Metric thread plug gauge
- Accuracy: 5g,5h, 6g,6h,7g,7h, etc.
- Available in GO, NO GO, and combination GO/NOGO types
- Conforms to DIN13 standard
- Wear-resistant and corrosion-resistant construction
- Stable structure for easy operation
- Includes fitted case for storage
Specifications
| Order No. | Size | Coarse | Fine | Accuracy | ||||
| Pitch 1 | Pitch 2 | Pitch 3 | Pitch 4 | Pitch 5 | Pitch 6 | |||
| KM-P180 | M18.0 | 2.50 | 2.00 | 1.50 | 1.00 | 0.75 | 0.50 |
4h 4h5h 5g 5h 5h6h 6g 6h 7g 7h |
| …… | …… | …… | …… | …… | …… | …… | ||
| KM-P320 | M320 | |||||||
Applications
These thread plug gauges are essential tools for inspecting thread dimensions, widely used in automotive manufacturing, aerospace, machining, and electronic processing industries. They ensure thread accuracy and improve product qualification rates.
Usage Precautions
- Avoid touching the working surface with bare hands to prevent rust
- Store on appropriate surfaces (tool cabinet or wooden backing plate), not on machine tool holders or guide rails
- Regularly inspect for damage, rust, or deformation
- For rust removal, soak in gasoline, wipe carefully, and apply anti-rust oil
- Never store working surfaces together to prevent adhesion
- Clean and store in dry conditions after use
Packing & Shipping
Company Profile
Frequently Asked Questions
1) Who are we?
Deko Corporation specializes in the development, manufacture, and marketing of KM brand precision measuring tools in China.
Deko Corporation specializes in the development, manufacture, and marketing of KM brand precision measuring tools in China.
2) What products do we carry?
Our product range includes dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, and levels.
Our product range includes dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, and levels.
3) How about after-sales service?
All products come with a one-year warranty. We replace defective parts or products immediately upon receipt. Our strict calibration and inspection processes ensure superior product quality.
All products come with a one-year warranty. We replace defective parts or products immediately upon receipt. Our strict calibration and inspection processes ensure superior product quality.
